Row

Displays its children in a horizontal array.

To cause a child control to expand and fill the available horizontal space, set its [expand][flet.controls.core.row.Row.expand] property.

Example:

(
    ft.Row(
        controls=[
            ft.Card(
                shape=ft.ContinuousRectangleBorder(radius=10),
                content=ft.Container(
                    padding=5,
                    border_radius=ft.BorderRadius.all(5),
                    bgcolor=ft.Colors.AMBER_100,
                    content=ft.Text(f"Control {i}"),
                ),
            )
            for i in range(1, 6)
        ],
    ),
)

Basic row of controls

Inherits: LayoutControl, ScrollableControl, AdaptiveControl

Properties

• alignment(MainAxisAlignment) –

  Defines how the child controls should be placed horizontally.

• controls(list[Control]) –

  A list of Controls to display.

• intrinsic_height(bool) –

  Whether this row should be as tall as the tallest child control in

• run_alignment(MainAxisAlignment) –

  How the runs should be placed in the cross-axis when wrap is True.

• run_spacing(Number) –

  The spacing between runs when wrap is True.

• spacing(Number) –

  The spacing between the child controls.

• tight(bool) –

  Whether this row should occupy all available horizontal space (True),

• vertical_alignment(CrossAxisAlignment) –

  Defines how the child controls should be placed vertically.

• wrap(bool) –

  Whether this row should put child controls into additional rows (runs) if

Examples

Live example

Spacing children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.spacing = int(e.control.value)
        row.update()

    page.add(
        ft.Column(
            controls=[
                ft.Text("Spacing between items"),
                ft.Slider(
                    key="slider",
                    min=0,
                    max=50,
                    divisions=50,
                    value=0,
                    label="{value}",
                    on_change=handle_slider_change,
                ),
            ]
        ),
        row := ft.Row(
            spacing=0, controls=generate_items(10), scroll=ft.ScrollMode.AUTO
        ),
    )


if __name__ == "__main__":
    ft.run(main)

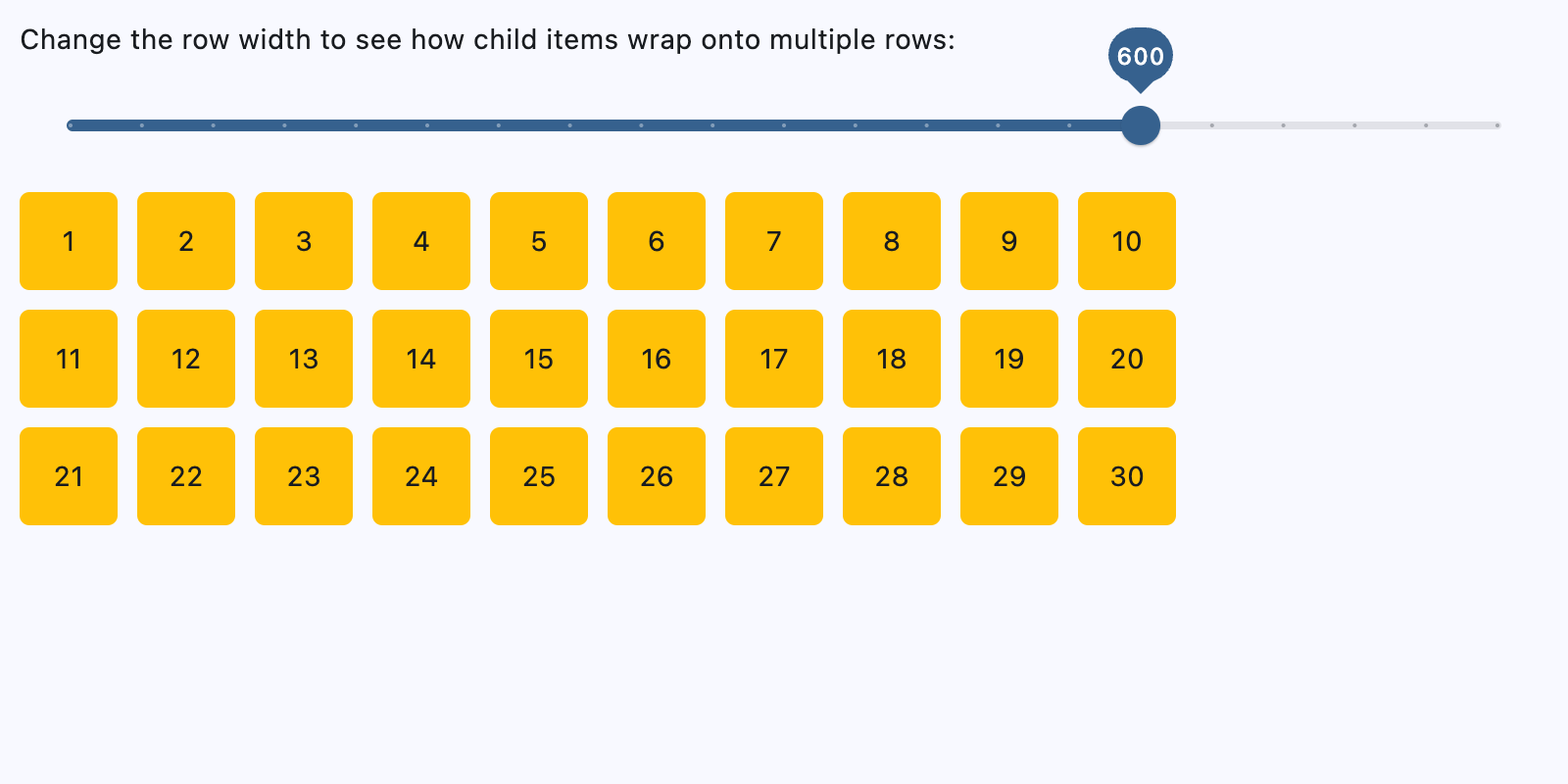

Wrapping children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.width = float(e.control.value)
        row.update()

    page.add(
        ft.Column(
            controls=[
                ft.Text(
                    "Change the row width to see how child items wrap onto multiple rows:"
                ),
                ft.Slider(
                    min=0,
                    max=page.window.width,
                    divisions=20,
                    value=page.window.width,
                    label="{value}",
                    on_change=handle_slider_change,
                ),
            ]
        ),
        row := ft.Row(
            wrap=True,
            spacing=10,
            run_spacing=10,
            controls=generate_items(30),
            width=page.window.width,
        ),
    )


if __name__ == "__main__":
    ft.run(main)

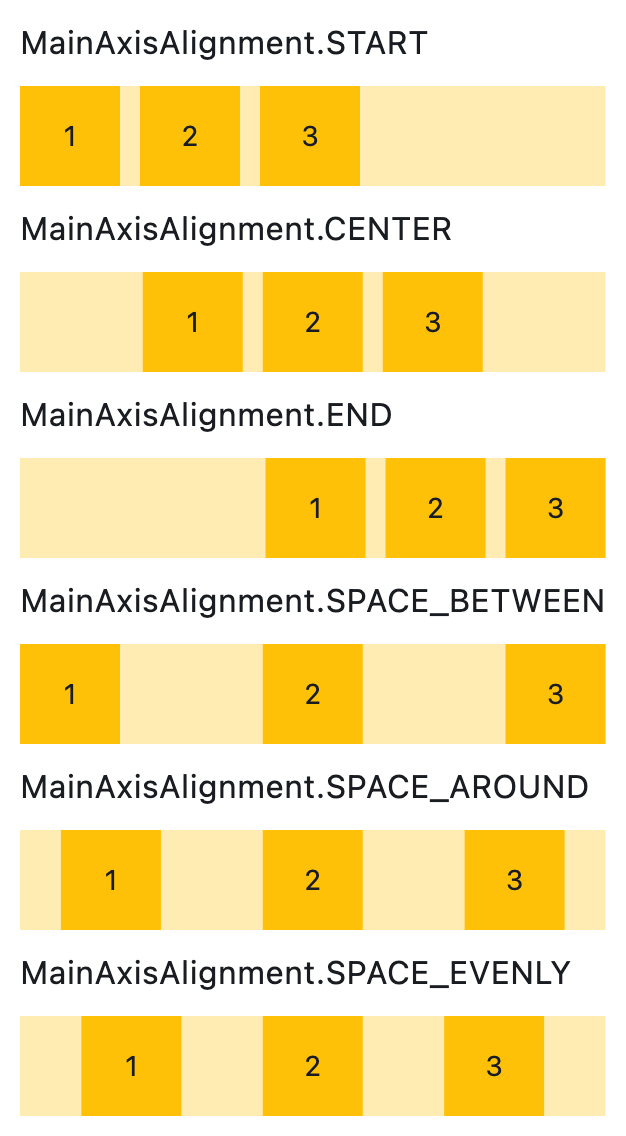

Setting horizontal alignment

import flet as ft


class RowWithAlignment(ft.Column):
    def __init__(self, alignment: ft.MainAxisAlignment):
        super().__init__()
        self.controls = [
            ft.Text(str(alignment), size=16),
            ft.Container(
                content=ft.Row(self.generate_items(3), alignment=alignment),
                bgcolor=ft.Colors.AMBER_100,
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.scroll = ft.ScrollMode.AUTO

    page.add(
        ft.Column(
            scroll=ft.ScrollMode.AUTO,
            controls=[
                RowWithAlignment(ft.MainAxisAlignment.START),
                RowWithAlignment(ft.MainAxisAlignment.CENTER),
                RowWithAlignment(ft.MainAxisAlignment.END),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_BETWEEN),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_AROUND),
                RowWithAlignment(ft.MainAxisAlignment.SPACE_EVENLY),
            ],
        )
    )


if __name__ == "__main__":
    ft.run(main)

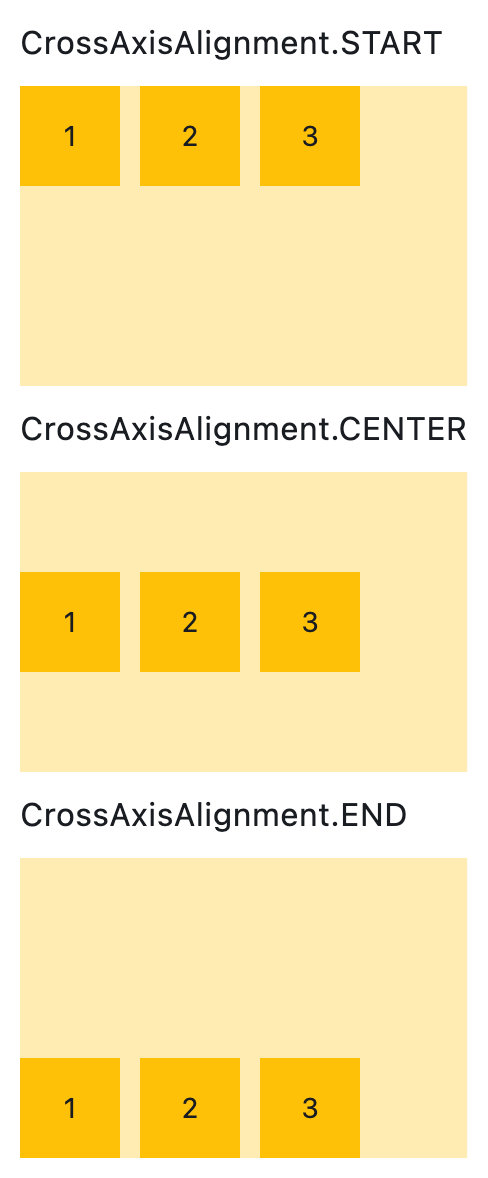

Setting vertical alignment

import flet as ft


class RowWithVerticalAlignment(ft.Column):
    def __init__(self, alignment: ft.CrossAxisAlignment):
        super().__init__()
        self.controls = [
            ft.Text(str(alignment), size=16),
            ft.Container(
                content=ft.Row(self.generate_items(3), vertical_alignment=alignment),
                bgcolor=ft.Colors.AMBER_100,
                height=150,
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.add(
        RowWithVerticalAlignment(ft.CrossAxisAlignment.START),
        RowWithVerticalAlignment(ft.CrossAxisAlignment.CENTER),
        RowWithVerticalAlignment(ft.CrossAxisAlignment.END),
    )


if __name__ == "__main__":
    ft.run(main)

Properties

alignment class-attribute instance-attribute

alignment: MainAxisAlignment = START

Defines how the child controls should be placed horizontally.

controls class-attribute instance-attribute

controls: list[Control] = field(default_factory=list)

A list of Controls to display.

intrinsic_height class-attribute instance-attribute

intrinsic_height: bool = False

Whether this row should be as tall as the tallest child control in controls.

run_alignment class-attribute instance-attribute

run_alignment: MainAxisAlignment = START

How the runs should be placed in the cross-axis when wrap is True.

run_spacing class-attribute instance-attribute

run_spacing: Number = 10

The spacing between runs when wrap is True.

spacing class-attribute instance-attribute

spacing: Number = 10

The spacing between the child controls.

Note

Has effect only when alignment is set to MainAxisAlignment.START, MainAxisAlignment.END, or MainAxisAlignment.CENTER.

tight class-attribute instance-attribute

tight: bool = False

Whether this row should occupy all available horizontal space (True), or only as much as needed by its children controls (False).

Note

Has effect only when wrap is False.

vertical_alignment class-attribute instance-attribute

vertical_alignment: CrossAxisAlignment = CENTER

Defines how the child controls should be placed vertically.

Note

When wrap is True, this property doesn't support CrossAxisAlignment.STRETCH or CrossAxisAlignment.BASELINE. If either is used, CrossAxisAlignment.CENTER will be applied instead.

wrap class-attribute instance-attribute

wrap: bool = False

Whether this row should put child controls into additional rows (runs) if they don't fit in a single row.
